CS Direct Ex Heater

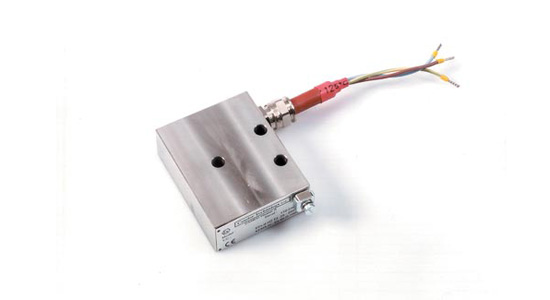

ELECTRICAL DIRECT HEATER – MODEL CS-(*)S  (Body: 316 Stainless Steel)

explosion proof heaters


Categories: ,


1 Application

Direct-heaters for Hazardous locations, designed for direct mounting onto e.g. manifolds etc.

  • Anticondensation
  • Freeze protection
  • Temperature maintenance

2 Features and Advantages

  • Self-limiting heating elements
  • Small dimensions
  • No moving parts, no maintenance required, therefore long lifetime
  • Suitable for T4 and T3 classifications
  • Can be used for 110/240 VAC/DC

3 Remarks

  • All Cameo Heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption. Our Cameo Direct-heaters are designed to heat the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
  • When required in other applications, e.g. analyzers, it is normal practice to use our Direct-heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to 135°C) or our FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

CS-1ST3ca. 115°C Surface temperature*250-25 Watt
CS-2ST4ca. 105°C Surface temperature*250-25 Watt
CS-3ST4ca.  90°C Surface temperature*250-25 Watt
CS-4ST4ca.  70°C Surface temperature*250-25 Watt
* these temperatures are measured at 20 °C ambient temperature.

5 Technical data

Power250-25 Watt
Electrical cable3 x 1 sqmm
Material cablebraided silicone, optional: non-braided cable
Standard lengthca. 1 mtr. Other lengths optional
Overall dimensions85x65x28 mm (LxWxH)
Weightca. 900 g.
MaterialStainless steel 316
EX protection classII 2G Ex d IIC T4 or T3

II 2D Ex tD A21 IP66 T 135°C or T200 °C
ATEX CertificationKEMA 01ATEX2124X and IECEx DEK 11.0017
IP degreeIP 66
Voltage AC/DC110/240
Ambient temp. range– 60°C….+ 90°C
