Description
1 Application

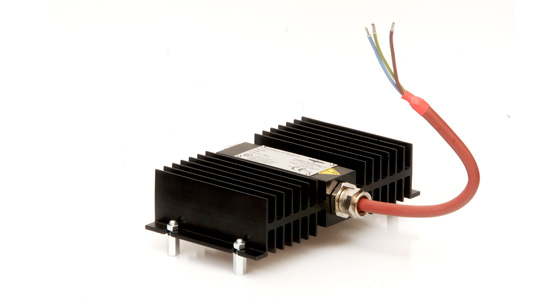

Space-heaters for Hazardous locations, designed for
- Freeze protection
- Anti-condensation
- Temperature maintenance
2 Features and Advantages
- Self-limiting heating elementsSmall dimensions
- No moving parts, no maintenance required, therefore long lifetime
- Suitable for T4 and T3 classifications
- Can be used for 110/240 VAC/DC
3 Remarks
- All Cameo Space-heaters are designed around self-limiting heating elements. These self-limiting semi-conductor elements are saving power consumption.
- Our Cameo Space-heaters are designed to heat the air inside an enclosure and indirectly the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
- When required in other applications, e.g. analyzers, it is normal practice to use our Space-heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to 135°C) or our FixTherm.
- Inline Thermostat(range from 10°C up to 60°C).Do not cover the fins to guarantee free convection.
4 Range
| LP-1AF | T3 | ca. 115°C Surface temperature | 100-10 Watt |
| LP-2AF | T4 | ca. 105°C Surface temperature | 100-10 Watt |
| LP-3AF | T4 | ca. 90°C Surface temperature | 100-10 Watt |
| LP-4AF | T4 | ca. 70°C Surface temperature | 100-10 Watt |
* these temperatures are measured at 20°C ambient temperature.
5 Technical data
| Power | 100-10 Watt |
| Electrical cable | 3 x 1 sqmm, braided std. |
| Material cable | braided silicone, optinal: non-braided cable |
| Standard length | ca. 1 mtr. Other lengths optinal |
| Overall dimensions | 164 x 100 x 60 mm (LxWxH) |
| Weight | Aluminium heater ca. 886 g |
| Material | black anodized aluminium (A) |
| Protection class | II 2G Ex d IIC T4 or T3 II 2D Ex tD A21 IP66 T 135°C or T200 °C |
| Certification | KEMA 01ATEX2124X and IECEx DEK 11.0017 |
| IP degree | IP 66 |
| Voltage AC/DC | 110/240 |
| Ambient temp. range | – 60°C…+ 90°C |
