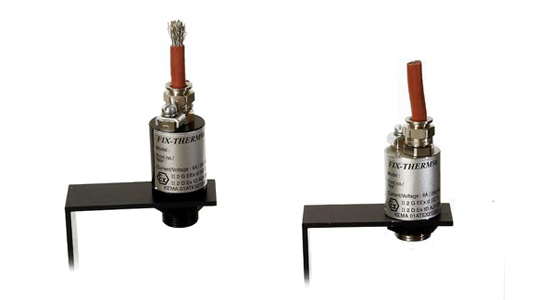

FIX THERM 96 TH Thermostat

ELECTRICAL THERMOSTAT FIX THERM96 TH-*/*

explosion proof heaters

IECEx

Description

1 Application

The FixTherm96-Thermostats are often used as maximum thermostat in instrumentation cabinets with space-heating, to protect the equipment from overheating.

  • Prevention of overheating
  • Temperature protection

2 Features and Advantages

  • Setpoints up to 135°C
  • Accurate set-point (± 3°C)
  • Small hysteresis
  • Anodized Aluminium housing ( Stainless steel housing available)
  • Armoured electrical cable standard
  • Suitable for T6 and T4 classification
  • Can be used for 6A / 240 VAC/DC

3 Remarks

  • The housing is made from anodized Aluminium or on request Stainless Steel type 316.
  • When required in applications, e.g. analyzers, it is normal practice to use our Space-heaters and Direct-heaters in combination with these Fix-Therm96 thermostats (range from 10°C up to 135°C). The FixTherm96 can also be used for cooling purposes e.g. FixTherm TH-10/5F.

4 Range

  • Aluminium: TH-10/5 – going up with 5°C setpoints e.g. 10/5 – 15/10 – 20/15 etc. up to 135°C maximum.
  • Stainless Steel bodies: identical range.

5 Technical data

HousingAnodized Aluminium or Stainless Steel
Current / voltage6A / 240 VAC
Cable3x 0,75 sqmm
Material cablesilicone braided cable, optinal non-braided cable. (remark: not applicable for inline thermostats)
Standard lengthca. 1 mtr
Other lengthson request
Overall dimensionso.d. 30 mm x 49 mm length
Weightca. 160 g.
SwitchSPST
Set-point tolerance+/- 3°C
Hysteresisca. 2°C
Mounting bracketavailable (B)
Ambient temp. range-50 °C … + 90 °C
EX protection classII 2G Ex d IIC T6 or T4 : II 2D Ex tD A21 IP66 T 85°C or T 135°C
CertificationKEMA 01ATEX2125X and IECEx DEK 11.0017
