Description
1 Application

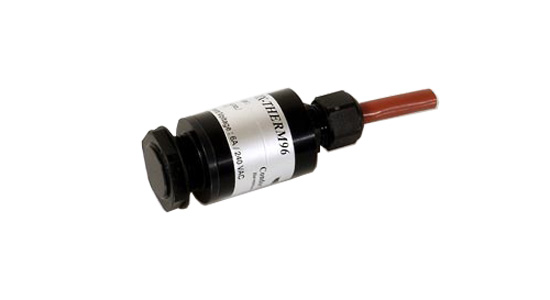

For Non-Hazardous areas the General Purpose FixTherm96 thermostats are very suitable. Often used as maximum thermostat in instrumentation cabinets with space heating, to protect the equipment from overheating. Or as a minimum thermostat with space heating to protect from freezing.
In short, temperature maintenance.
- Prevention of overheating
- Freeze protection
- Anticondensation
2 Features and Advantages
- Setpoints up to 135°C
- Accurate set-point – (N.C. contact)
- Small hysteresis
- Anodized aluminium housing ( Stainless steel housing available)
- Inside grounding
- Can be used for 110 / 240 VAC/DC
3 Remarks
- The housing is made from anodized aluminium. When required in other applications, e.g. analyzers, it is normal practice to use our Space-Heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to
130°C). - The FixTherm96 can also be used for cooling purposes e.g. FixTherm96 TH-10/5F (N.O. contact).
4 Range
- GTH-10/5 – going up with 5°C each time e.g. 10/5 – 15/10 – 20-15 etc. up to 130°C maximum.
5 Technical data
| Housing | Anodized Aluminium |
| Current / voltage | 6A / 240 VAC |
| Cable | 3x 0,75 sqmm |
| Material cable | non-braided silicone cable |
| Standard length | ca. 1 mtr., other lengths optional |
| Overall dimensions | ca.30×49 mm (diameter xH) |
| Weight | ca. 160 g. |
| Switch | SPST |
| Set-point tolerance | +/- 3°C |
| Hysteresis | ca. 2°C |
| Mounting bracket | available (B) |
